Compounds database – subtypes

For seal materials and related machining, 5 fixed groups exists:

  • PU
  • Rubber
  • Plastic
  • PTFE
  • Metal

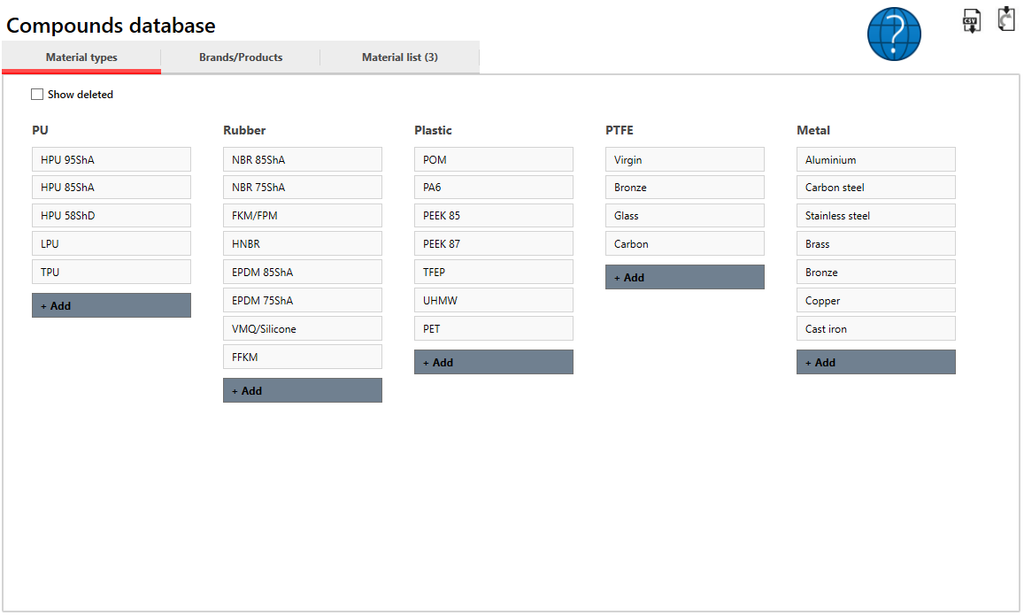

And those groups are preloaded with the standard materials as presented below:

All the sub materials information can be changed, deleted (right click) or more added to suit the client reality. A user with level zero, cannot change or edit this list.

When a subproduct is deleted, the same can be undeleted, by choosing the option “show deleted” then using the right click over the deleted product, choosing the undelete option.

The numeric value inside each sub product is the sub product ID, that is used to relate all the information that is shown to the user during the use of the software and to import and export the database information.

For example if today a raw material tube is of type PU and subtype TPU (id 5), but tomorrow the TPU text is changed for TPU TOP, since the sub type will be the same, tomorrow all that was relating to TPU will be related to TPU TOP.
